High Flow Filter Cartridge End Caps To Replace 3M

Item No.: SIIC-FPP-HF6-EC3M

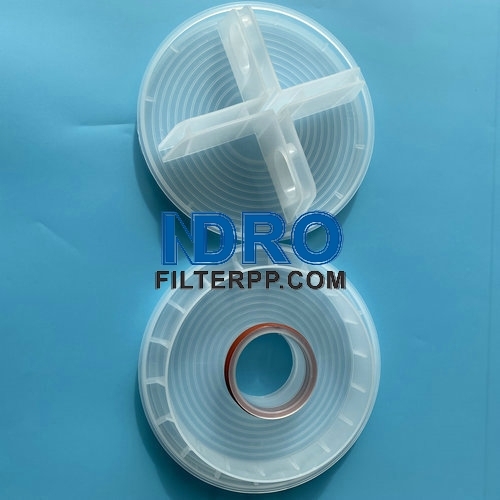

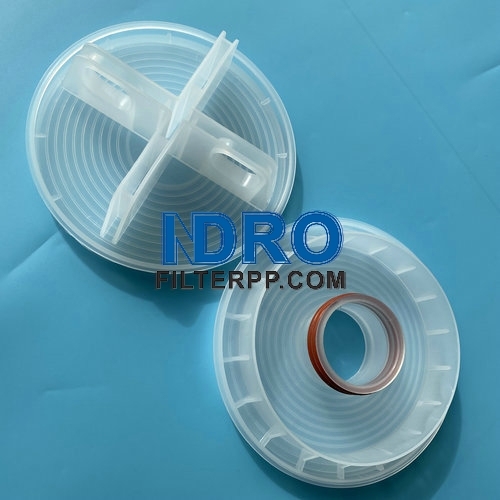

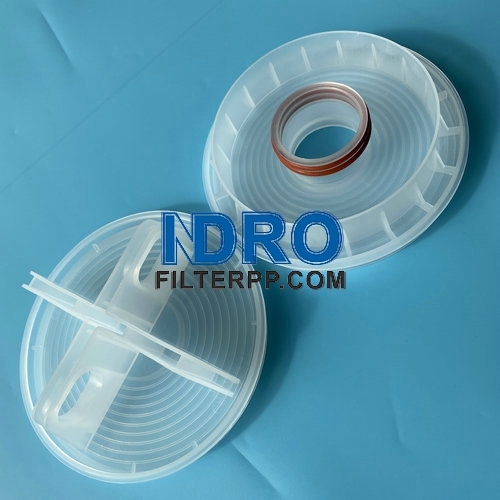

These items of end caps include top cover and bottom parts, are mainly made of polypropylene, used for making 6 inch diameter high flow filter cartridges which are to replace 3M.
Description Data Applications
Description

High Flow Filter Cartridge End Caps To Replace 3M
Item Model: SIIC-FPP-HF6-EC3M

These items of end caps include top cover and bottom parts, are mainly made of polypropylene, used for making 6inch diameter high flow filter cartridges which are to replace 3M.

3M filter end cap parts3M high flow filter end cap part
                           SIIC-FPP-HF6-EC3MCRH                                                                            SIIC-FPP-HF6-EC3MOCA

What is the connection cap of high flow filter cartridge?
As of one assembly parts of high filter cartridges, the connection cap is to connect one 20inch long filter and one 40inch long filter to get one 60inch long high flow pleated filter. It is necessary part for making 60inch long high flow filter cartridges.
Mostly, the connection cap is made of polypropylene. Except for polypropylene, this connection cap can be also made of fiberglass, nylon and other special materials.

What is end caps of high flow filter cartridges?
The end caps include top cover and bottom cap, used for filter’s installation and water exits, also called fitting ends.
In order to match a specific filter vessels or housings, there are specific requirements for the interface of the filter element.


Related items:
single 40connection cap ring for high flow filter

single 40inch long plastic tube/core for high flow filter                          plastic connection cap/ring for high flow filter



end cap plastic parts for Pentair high flow filterParker high flow filter end cap parts

plastic end cap parts for high flow filter to replace Pentair         plastic end cap parts for high flow filter to replace Parker



end cap plastic parts for pall high flow filterend cap plastic parts for high flow bag filter

Plastic end cap parts for high flow filter to replace Pall           basket type plastic end cap parts for high flow pleated filter



cartridge filter media pleat support net/meshfilter cartridge pleats protection outer sleeve

cartridge filter media pleats support net/mesh                                    high flow filter cartridge protection outer sleeve

Data
Item Model No Description Material Size
High Flow Filter Cartridge End Caps To Replace 3M SIIC-FPP-HF6-EC3MCRH cap 1-closed end bottom with cross-type handle; cap 2-open cap with double O-rings outside Capspolypropylene; fiberglass, nylon and other material can be custom made; O rings: Silicone rubber, EPDM, NBR and Viton. For High Flow Filter with OD 6inch
SIIC-FPP-HF6-EC3MOCA cap 1-closed end bottom with big handle; cap 2-open cap with arrow fins and single O-ring outside;
Applications

These items of end caps include top cover and bottom parts, are mainly made of polypropylene, used for making 6inch diameter high flow filter cartridges which are to replace 3M.
